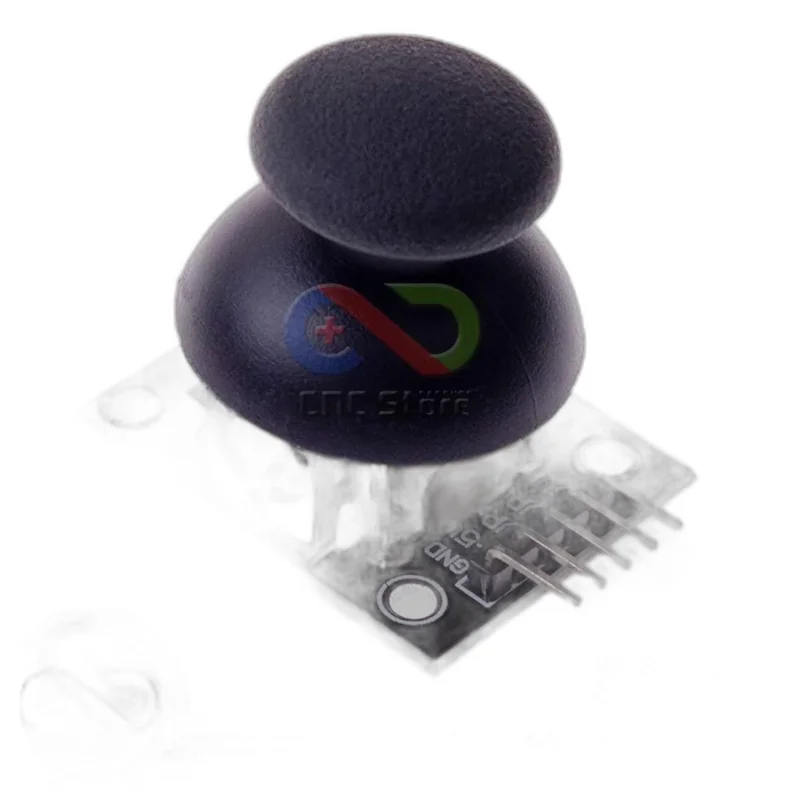

Dual-Axis Analog Joystick Module
—A dual-axis analog joystick module reports X and Y position as two analogue voltages, with a push switch under the stick.
Specifications
- Two-axis potentiometer joystick
- Analogue X and Y outputs
- Push switch on the Z axis
- 3.3-5V supply
- Self-centring spring return
What you can build with the Dual-Axis Analog Joystick Module
- Robot and rover manual control
- Camera pan-and-tilt control
- Menu navigation and games
- Classroom control projects
Compatibility
Works with Arduino, ESP32 and Pico via two analogue inputs; a Raspberry Pi needs an external ADC such as the ADS1115. Centre position is rarely exactly mid-scale, so read and store the resting value at startup.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
