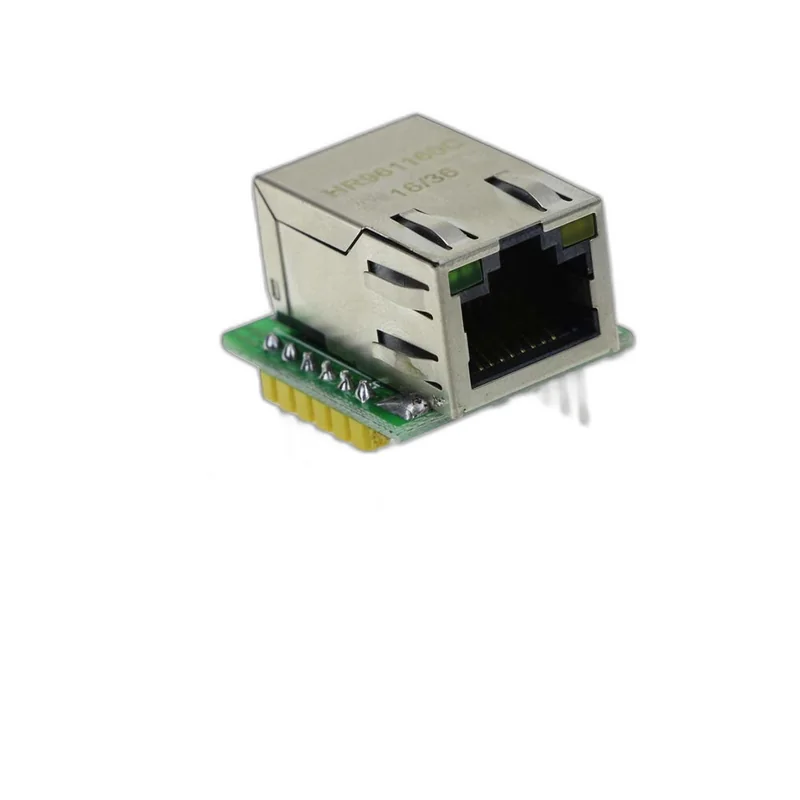

W5500 Ethernet Module (SPI)
—The W5500 is a hardwired Ethernet controller module that gives a microcontroller a wired network connection with the TCP/IP stack handled in the chip.
Specifications
- W5500 with hardwired TCP/IP stack
- 10/100Mbps Ethernet
- Up to 8 simultaneous sockets
- SPI interface
- 3.3V logic, 5V tolerant inputs
- RJ45 with integrated magnetics
What you can build with the W5500 Ethernet Module (SPI)
- Wired network sensors where Wi-Fi is unreliable
- Industrial and building controllers
- Devices needing a static, stable connection
- Projects in metal enclosures that block Wi-Fi
Compatibility
Works with Arduino, ESP32 and Pico using the Ethernet library. The hardwired stack means the microcontroller does not run the networking code itself, which is why it works on boards with very little RAM.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
