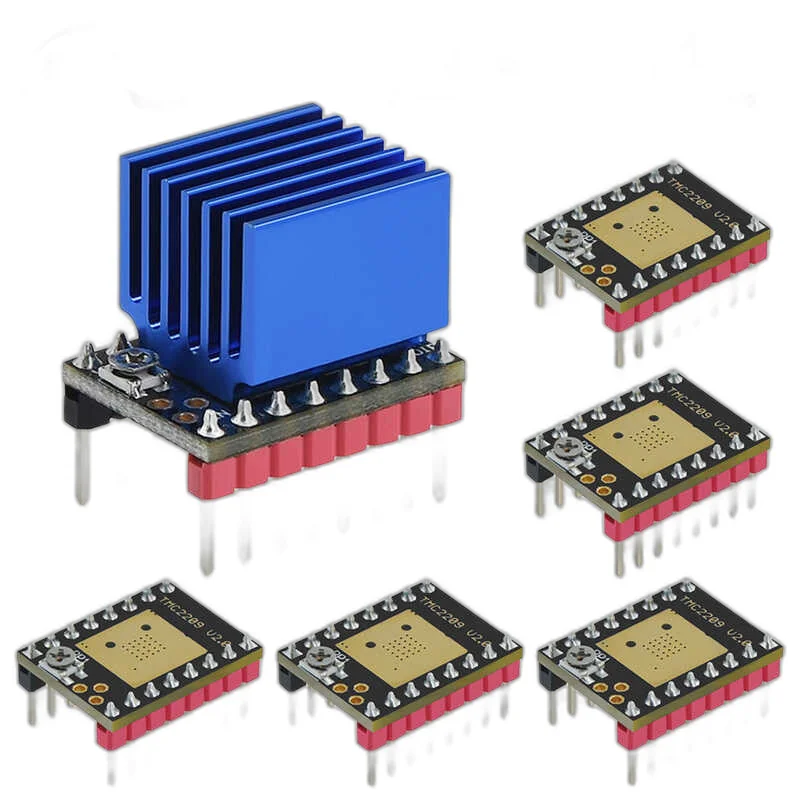

TMC2209 Silent Stepper Motor Driver
—The TMC2209 is a silent stepper motor driver module that uses StealthChop chopper control to run stepper motors almost inaudibly, standard in modern 3D printers.
Specifications
- Up to 2A RMS per phase with cooling
- 4.75-29V motor supply
- Up to 1/256 microstepping with interpolation
- StealthChop2 quiet mode and SpreadCycle for torque
- StallGuard4 sensorless homing
- UART configuration or standalone jumper setup
- Pin-compatible with A4988 and DRV8825 sockets
What you can build with the TMC2209 Silent Stepper Motor Driver
- Quiet 3D printer upgrades
- CNC and laser engraver axes
- Camera sliders that must not be heard
- Automated blinds and doors in living spaces
- Sensorless homing without endstop switches
Compatibility
Drops into StepStick sockets on RAMPS, SKR and similar controller boards, and works standalone with Arduino or ESP32. Set the current limit with the on-board trimmer before running a motor, and fit a heatsink above about 1A.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
