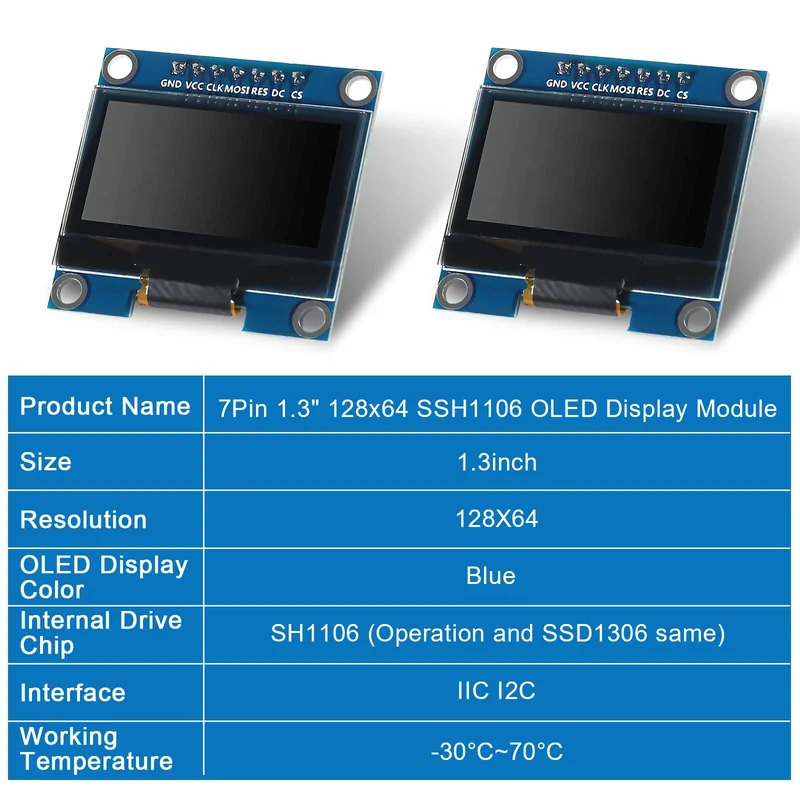

1.3" OLED Display Module (I2C, 128x64, SH1106)
—A 1.3-inch OLED display module with 128x64 pixels on the SH1106 controller, a larger version of the common 0.96-inch screen using the same two-wire I2C connection.
Specifications
- 128x64 monochrome OLED
- 1.3 inch diagonal
- SH1106 controller
- I2C interface — SDA and SCL
- 3.3-5V supply
- Typical address 0x3C
What you can build with the 1.3" OLED Display Module (I2C, 128x64, SH1106)
- Bench instruments and readouts
- Clock and weather displays
- Handheld device interfaces
- Status screens where 0.96" is too small
Compatibility
Works with Arduino, ESP32, ESP8266, Pico and Raspberry Pi using U8g2. Note the controller is SH1106, not SSD1306 — the wrong driver selection shows as a shifted or wrapped image.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
