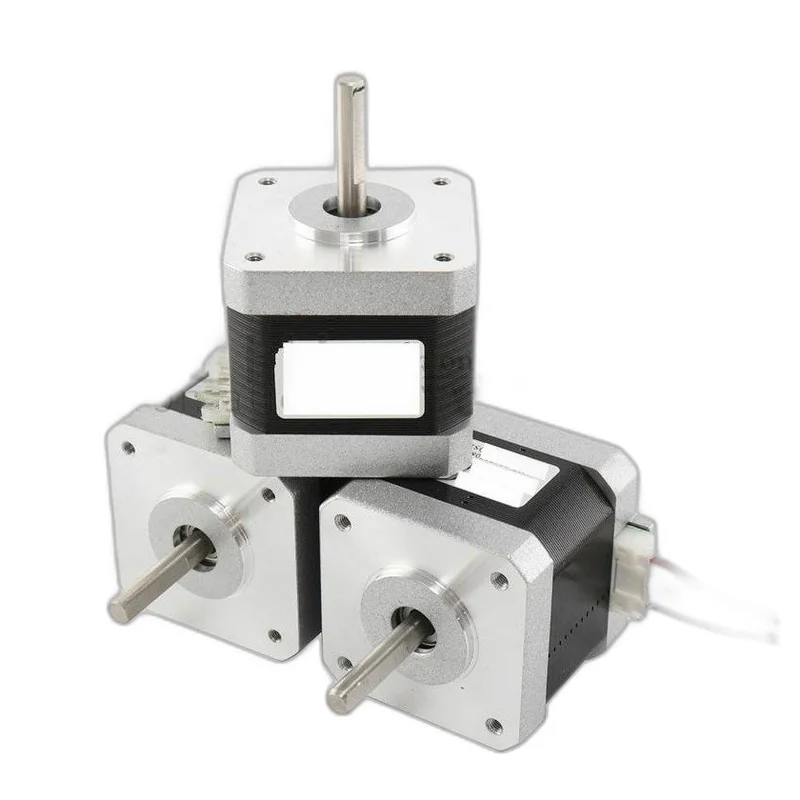

NEMA 17 Stepper Motor (1.8°, 42mm)
—A NEMA 17 stepper motor is the 42mm-frame motor used in 3D printers and CNC machines, moving in precise 1.8-degree steps under driver control.
Specifications
- NEMA 17 (42mm) frame, 1.8° per step (200 steps/rev)
- Typical holding torque 40-59 N·cm
- Bipolar, 4-wire connection
- Rated around 1.5-2A per phase
- 5mm shaft with flat
What you can build with the NEMA 17 Stepper Motor (1.8°, 42mm)
- 3D printer axes and extruders
- CNC and laser engraver motion
- Camera sliders and rotary tables
- Automated blinds and large actuators
Compatibility
Needs a stepper driver such as the A4988, DRV8825 or TMC2209 — it cannot be driven from microcontroller pins. Works with Arduino, ESP32 and Raspberry Pi through that driver.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
A NEMA 17 stepper motor is the 42mm-frame motor used in 3D printers and CNC machines, moving in precise 1.8-degree steps under driver control.
Specifications
- NEMA 17 (42mm) frame, 1.8° per step (200 steps/rev)
- Typical holding torque 40-59 N·cm
- Bipolar, 4-wire connection
- Rated around 1.5-2A per phase
- 5mm shaft with flat
What you can build with the NEMA 17 Stepper Motor (1.8°, 42mm)
- 3D printer axes and extruders
- CNC and laser engraver motion
- Camera sliders and rotary tables
- Automated blinds and large actuators
Compatibility
Needs a stepper driver such as the A4988, DRV8825 or TMC2209 — it cannot be driven from microcontroller pins. Works with Arduino, ESP32 and Raspberry Pi through that driver.
