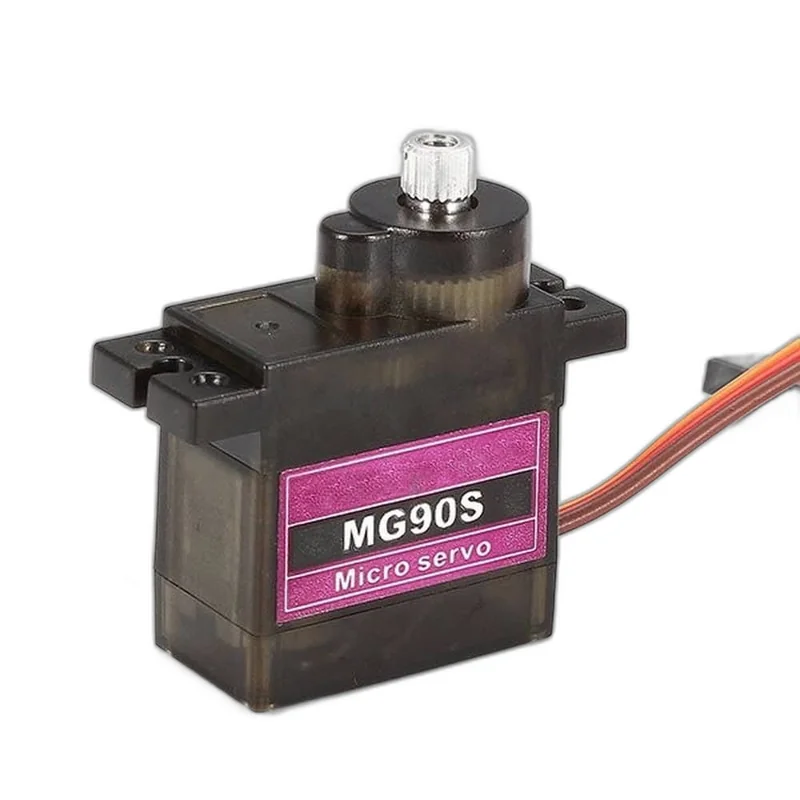

MG90S Metal Gear Servo
—The MG90S is a metal-geared micro servo with the same footprint as an SG90 but roughly twice the torque and far better resistance to stripping under load.
Specifications
- About 2.2 kg·cm torque at 4.8V, 2.5 kg·cm at 6V
- Roughly 180° range of rotation
- 4.8-6V supply
- Metal gear train, approximately 13.4g
- Standard three-wire servo connector
- Controlled by a 50Hz PWM signal
What you can build with the MG90S Metal Gear Servo
- Robot arms that carry actual weight
- Walking and legged robots
- Camera gimbals
- Locks and latches
- Any build where an SG90 has already stripped its gears
Compatibility
Drop-in replacement for the SG90 — same mounting, same control signal, same library. Metal gears are the reason to choose it; plastic-geared servos fail first at the gear train.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
