Light, Rain & Flame Sensor Module Pack
—A three-module pack containing a light-dependent (LDR) sensor, a rain/water detection board and an infrared flame sensor, each with both digital and analogue outputs.
Specifications
- Light sensor: LDR with adjustable threshold
- Rain sensor: exposed comb PCB plus comparator board

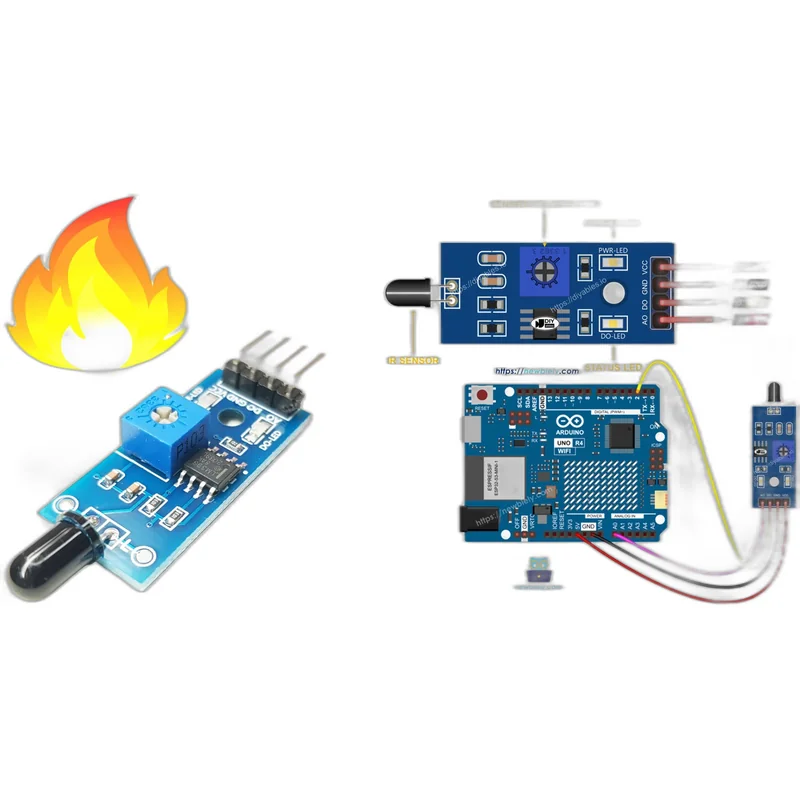

- Flame sensor: IR photodiode, roughly 760-1100nm
- Each board has digital and analogue outputs
- 3.3-5V supply
- Trimmer potentiometer sets the digital trigger point on each
What you can build with the Light, Rain & Flame Sensor Module Pack
- Automatic curtain and light control
- Rain alerts for washing lines and skylights
- Fire and candle detection projects
- Classroom sensor experiments
- Weather station add-ons
Compatibility
Works with Arduino, ESP32 and Pico directly. On a Raspberry Pi the digital outputs work but the analogue outputs need an external ADC. The rain board's exposed PCB corrodes over time and is best treated as a consumable.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
