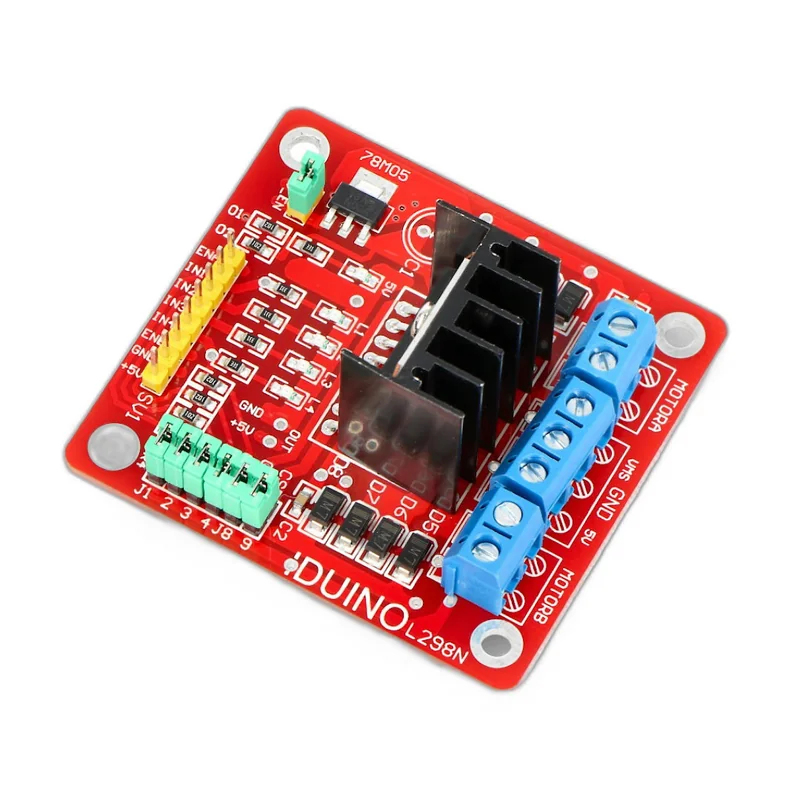

L298N Dual H-Bridge Motor Driver Module
—The L298N is a dual H-bridge motor driver module that runs two DC motors or one bipolar stepper with independent direction and speed control from a microcontroller.
Specifications
- Dual full H-bridge, 2A continuous per channel
- Motor supply 5-35V DC
- On-board 5V regulator can power the logic side
- PWM speed control and direction pins per channel
- Screw terminals for motors and supply
- Heatsink fitted
What you can build with the L298N Dual H-Bridge Motor Driver Module
- Two- and four-wheel robot drive bases
- Line-following and obstacle-avoiding robots
- Motorised blinds, feeders and small actuators
- Bidirectional pump and fan control
- Camera sliders driven by DC motors
Compatibility
Works with Arduino, ESP32, Raspberry Pi and Pico. Older and less efficient than modern MOSFET drivers — it drops roughly 2V across the bridge — but it is robust, well documented and forgiving of wiring mistakes.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
