JSN-SR04T Waterproof Ultrasonic Level Sensor

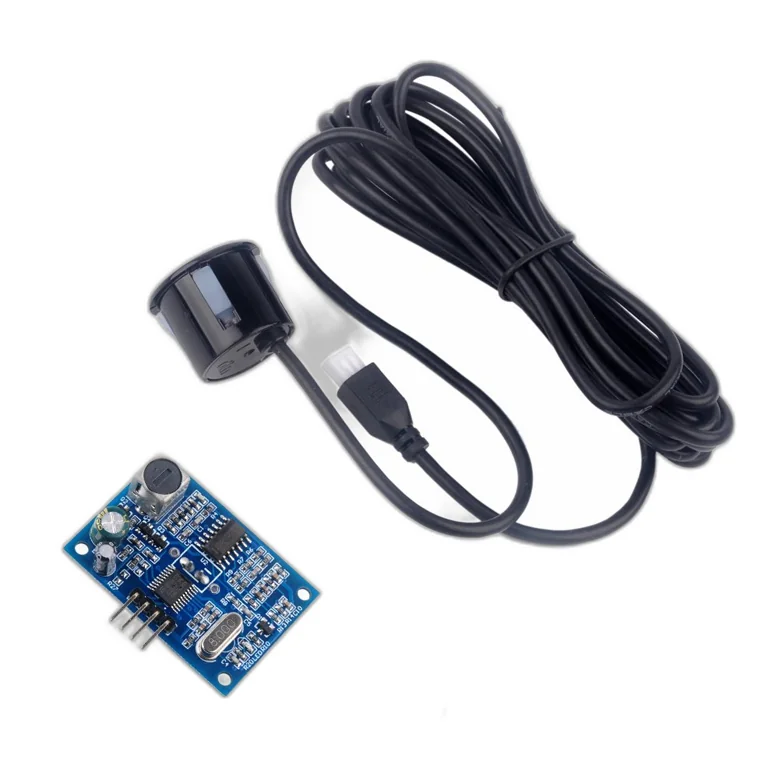

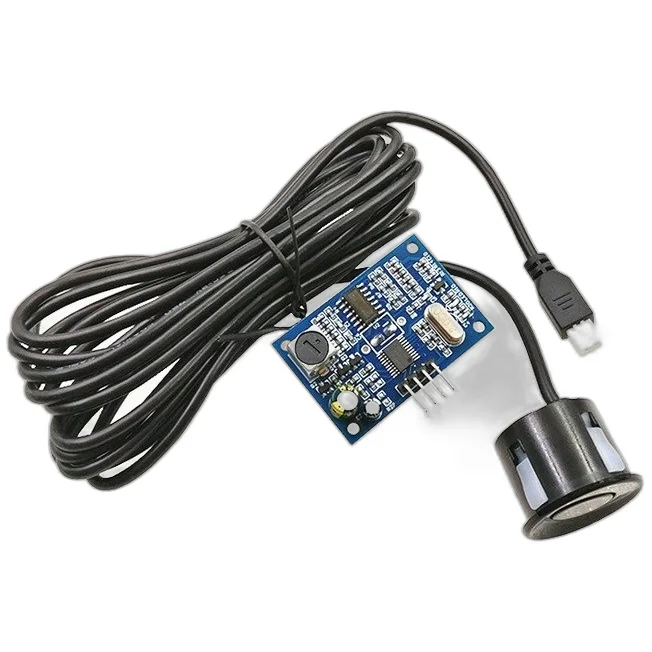

—The JSN-SR04T is a waterproof ultrasonic distance sensor with a sealed transducer on a lead, made for measuring liquid level and outdoor distance where an HC-SR04 would fail.
Specifications
- Range roughly 20cm to 600cm
- Sealed, waterproof transducer head on a 2.5m lead
- Separate control board kept dry inside an enclosure
- 5V supply, trigger and echo interface like the HC-SR04
- Suitable for condensing and splash environments
What you can build with the JSN-SR04T Waterproof Ultrasonic Level Sensor
- Water tank and trough level monitoring
- Rainwater and effluent tank sensing
- Stream and drain level logging
- Outdoor presence and vehicle detection
- Silo and feed bin level measurement
Compatibility
Uses the same trigger/echo interface as the HC-SR04, so existing code works with minimal change on Arduino, ESP32 and Raspberry Pi. Minimum range is longer than the HC-SR04's, so mount the head well above the highest expected level.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
