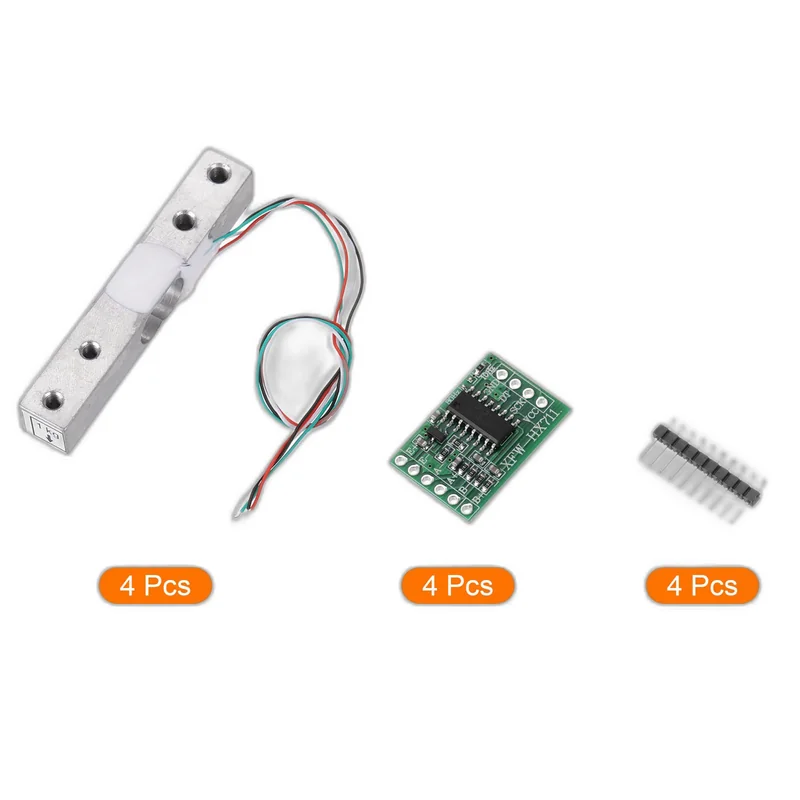

HX711 Amplifier + Load Cell Kit
—The HX711 kit pairs a 24-bit weight-sensing amplifier with a load cell, turning mechanical force into a digital reading a microcontroller can use as a scale.
Specifications
- 24-bit analogue-to-digital converter for load cells
- Selectable gain of 32, 64 or 128
- 10 or 80 samples per second
- 2.6-5.5V supply
- Two-wire serial interface (clock and data)

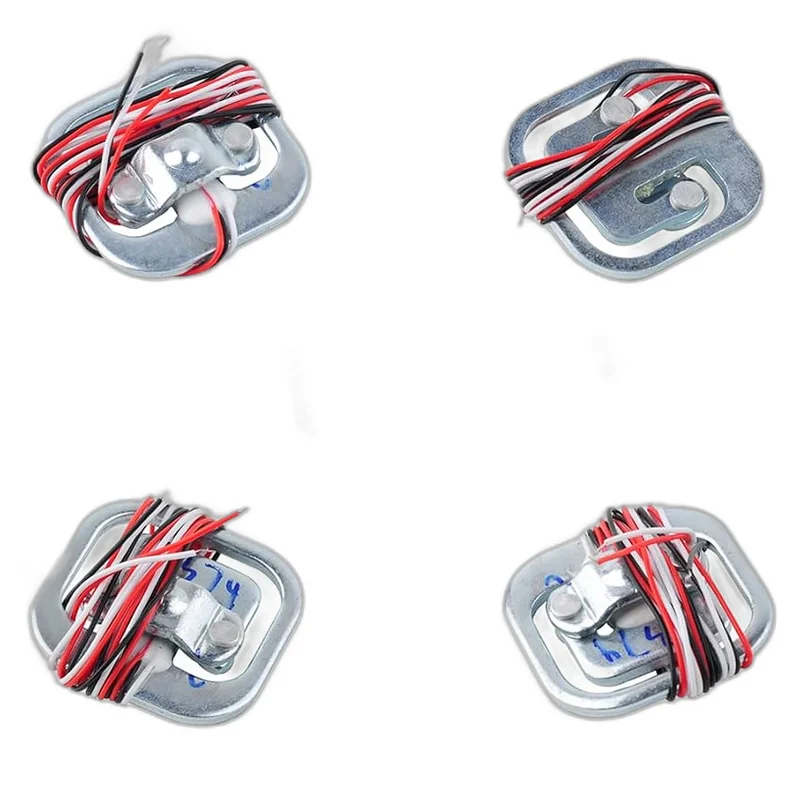

- Kit includes a load cell — typically 1kg, 5kg or 20kg
What you can build with the HX711 Amplifier + Load Cell Kit
- Kitchen and hobby scales
- Beehive weight monitoring
- Filament and feed level sensing
- Force measurement in student experiments
- Silo and tank level by weight
Compatibility
Works with Arduino, ESP32, ESP8266 and Raspberry Pi using the HX711 library. Load cells need calibrating against a known weight and mounting rigidly — a flexing mount is the usual cause of drifting readings.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
