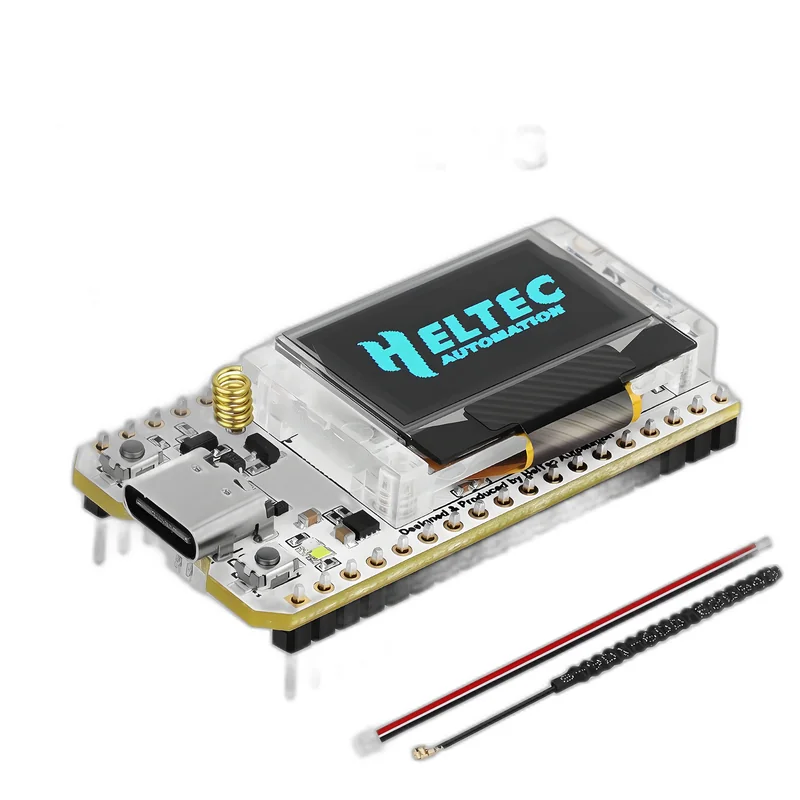

Heltec WiFi LoRa 32 V3 (915MHz, NZ band)

The Heltec WiFi LoRa 32 V3 is an ESP32-S3 board with a 915MHz LoRa radio and OLED display built in, and it is the most common starting point for a Meshtastic node in New Zealand.

Specifications

• ESP32-S3FN8 dual-core with Wi-Fi and Bluetooth LE
• Semtech SX1262 LoRa transceiver
• 915MHz band — the correct band for New Zealand
• 0.96 inch OLED display on board
• Lithium battery connector with on-board charging
• USB-C, u.FL antenna connector
• Range of several kilometres line-of-sight with a decent antenna

What you can build with the Heltec WiFi LoRa 32 V3 (915MHz, NZ band)

• Meshtastic off-grid messaging nodes
• Tramping and backcountry communication
• Farm and lifestyle-block sensor telemetry
• LoRaWAN gateways and sensor nodes
• Asset tracking without a cellular plan

Compatibility

Flashed with Meshtastic firmware from a browser, or programmed with the Arduino IDE, PlatformIO or ESPHome. Buy the 915MHz version: New Zealand's licence-free ISM allocation is 915-928MHz, and the 868MHz version sold for Europe must not be operated here.

Shipping

Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
