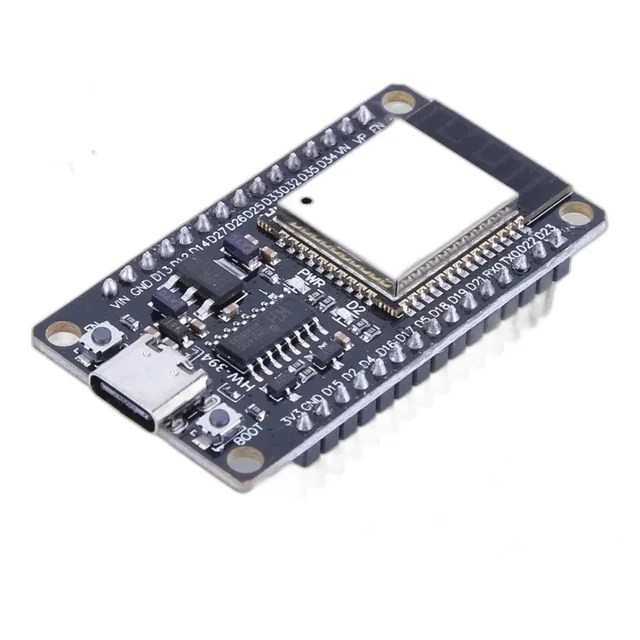

ESP32-WROOM-32 Development Board (USB-C, 30-pin)

The ESP32-WROOM-32 is a dual-core microcontroller board with Wi-Fi and Bluetooth built in, the standard low-cost choice for connected sensor and automation projects.

Specifications

• Espressif ESP32-D0WD dual-core Xtensa LX6 at 240MHz
• 520KB SRAM, 4MB flash
• 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth Classic + BLE
• 30-pin layout with USB-C connector
• Up to 34 GPIO, 18 ADC channels, touch inputs, DAC
• 3.3V logic; on-board regulator accepts 5V USB

What you can build with the ESP32-WROOM-32 Development Board (USB-C, 30-pin)

• Home Assistant sensors flashed with ESPHome
• Wi-Fi relay and lighting control
• MQTT temperature, humidity and door sensors
• Web-served dashboards on the local network
• Battery projects using deep sleep

Compatibility

Programmed with the Arduino IDE, PlatformIO, ESPHome or MicroPython. USB-C is a practical upgrade over the older micro-USB variant. GPIO is 3.3V — 5V sensor outputs need a divider or level shifter.
