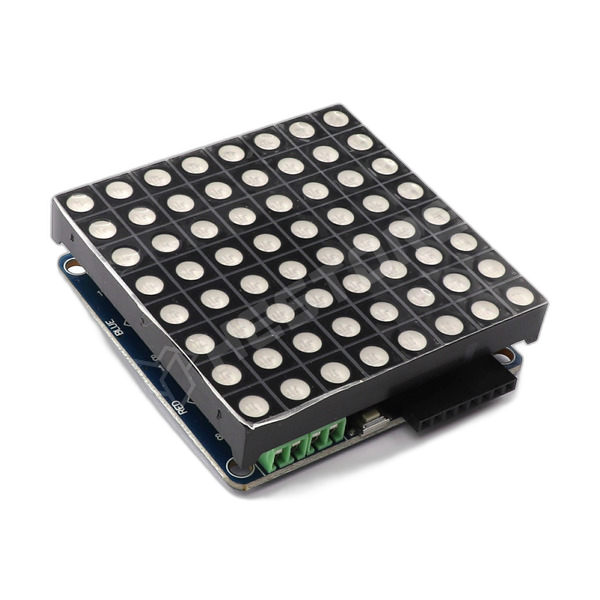

Colorduino v1.4 RGB LED Matrix Driver Module
—The Colorduino v1.4 is a dedicated driver board for 8x8 RGB LED matrices, with its own microcontroller and constant-current LED drivers so the host board is not tied up refreshing the display.
Specifications
- Drives one 8x8 common-anode RGB LED matrix
- On-board ATmega328P with DM163 constant-current drivers
- Per-channel brightness control for full-colour output
- Boards can be daisy-chained over I2C for larger displays
What you can build with the Colorduino v1.4 RGB LED Matrix Driver Module
- Scrolling RGB message boards
- Audio spectrum and VU displays
- Ambient art panels and light sculptures
- Game-of-life and pixel-art demos
Compatibility
Runs standalone or as a slave to an Arduino over I2C.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Reference: SKU-CV1-785
In stock: 4 Items
The Colorduino v1.4 is a dedicated driver board for 8x8 RGB LED matrices, with its own microcontroller and constant-current LED drivers so the host board is not tied up refreshing the display.
Specifications
- Drives one 8x8 common-anode RGB LED matrix
- On-board ATmega328P with DM163 constant-current drivers
- Per-channel brightness control for full-colour output
- Boards can be daisy-chained over I2C for larger displays
What you can build with the Colorduino v1.4 RGB LED Matrix Driver Module
- Scrolling RGB message boards
- Audio spectrum and VU displays
- Ambient art panels and light sculptures
- Game-of-life and pixel-art demos
Compatibility
Runs standalone or as a slave to an Arduino over I2C.
