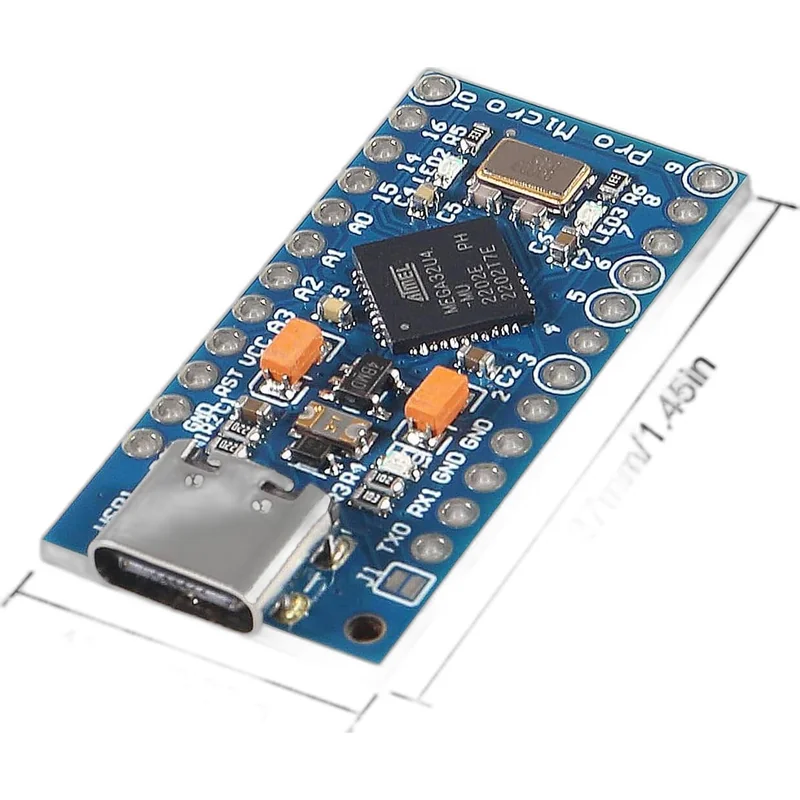

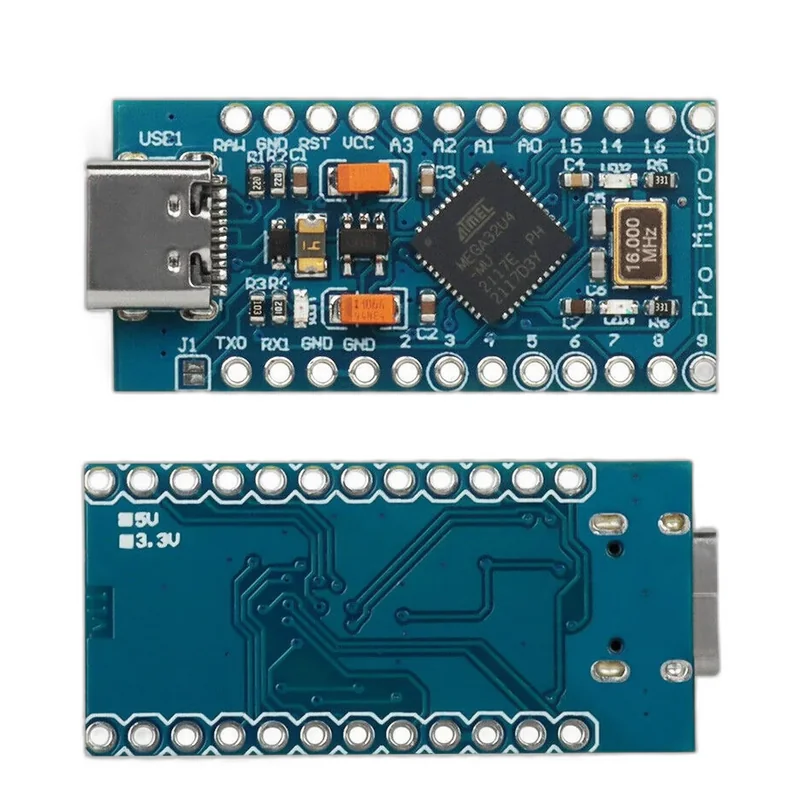

Arduino Pro Micro Compatible (ATmega32U4, USB-C)
—The Arduino Pro Micro is a compact ATmega32U4 board with native USB, which lets it present itself to a computer as a keyboard, mouse or game controller.
Specifications
- ATmega32U4 at 16MHz
- 32KB flash, 2.5KB SRAM
- Native USB — appears as a HID device
- 18 digital I/O (9 PWM), 9 analogue inputs
- USB-C on current versions
- 5V/16MHz or 3.3V/8MHz variants
- About 33 x 18mm
What you can build with the Arduino Pro Micro Compatible (ATmega32U4, USB-C)
- Custom keyboards and macro pads
- Game controllers and flight sim panels
- Automated input and testing rigs
- Compact projects needing USB identity
Compatibility
Programmed with the Arduino IDE using the Keyboard and Mouse libraries. Native USB is the distinguishing feature — an UNO or Nano cannot present as a keyboard without extra hardware.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
