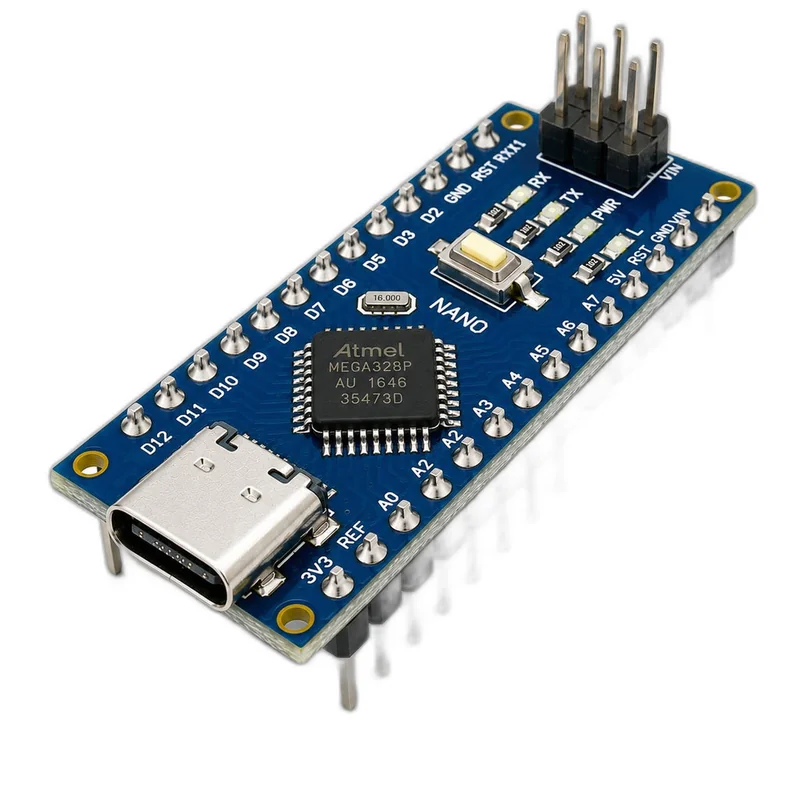

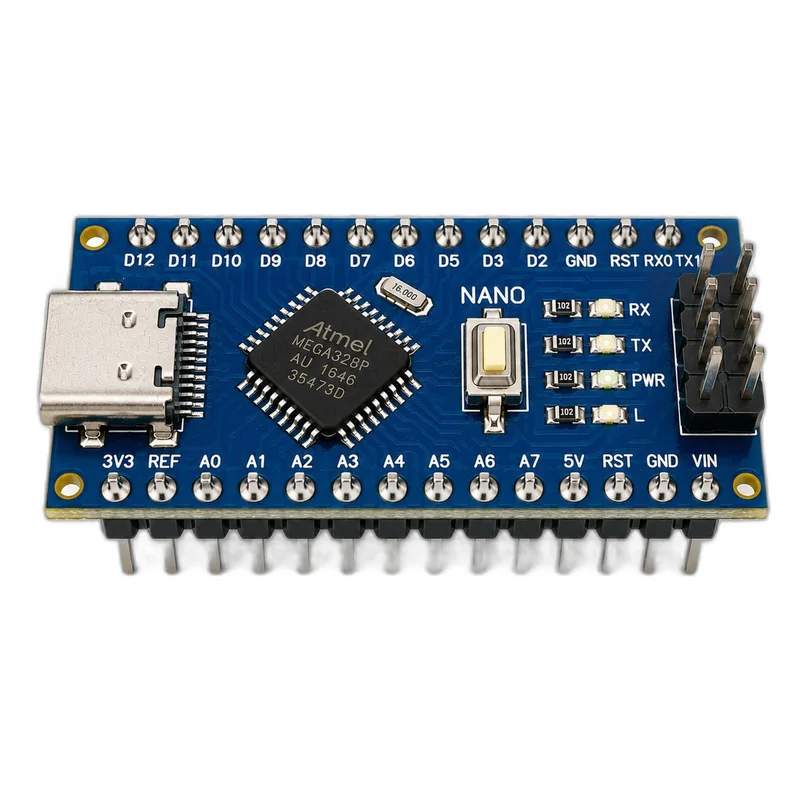

Arduino Nano V3 Compatible (USB-C, headers soldered)
—An Arduino Nano V3 compatible board with USB-C and headers already soldered, giving the UNO's ATmega328P processor in a breadboard-friendly footprint.
Specifications
- ATmega328P at 16MHz
- 32KB flash, 2KB SRAM
- 22 digital I/O (6 PWM), 8 analogue inputs
- USB-C connector
- Headers pre-soldered — plugs straight into a breadboard
- 5V logic, about 45 x 18mm
What you can build with the Arduino Nano V3 Compatible (USB-C, headers soldered)
- Permanent installations too small for an UNO
- Breadboard prototypes that stay assembled
- Robot and drone controllers where weight matters
- Multiple-board projects on one power rail
- Soldering directly into a perfboard build
Compatibility
Same code and libraries as the Arduino UNO — select 'Arduino Nano' in the IDE. Many clones use the CH340 chip and the 'Old Bootloader' processor option. 5V logic.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
An Arduino Nano V3 compatible board with USB-C and headers already soldered, giving the UNO's ATmega328P processor in a breadboard-friendly footprint.
Specifications
- ATmega328P at 16MHz
- 32KB flash, 2KB SRAM
- 22 digital I/O (6 PWM), 8 analogue inputs
- USB-C connector
- Headers pre-soldered — plugs straight into a breadboard
- 5V logic, about 45 x 18mm
What you can build with the Arduino Nano V3 Compatible (USB-C, headers soldered)
- Permanent installations too small for an UNO
- Breadboard prototypes that stay assembled
- Robot and drone controllers where weight matters
- Multiple-board projects on one power rail
- Soldering directly into a perfboard build
Compatibility
Same code and libraries as the Arduino UNO — select 'Arduino Nano' in the IDE. Many clones use the CH340 chip and the 'Old Bootloader' processor option. 5V logic.
