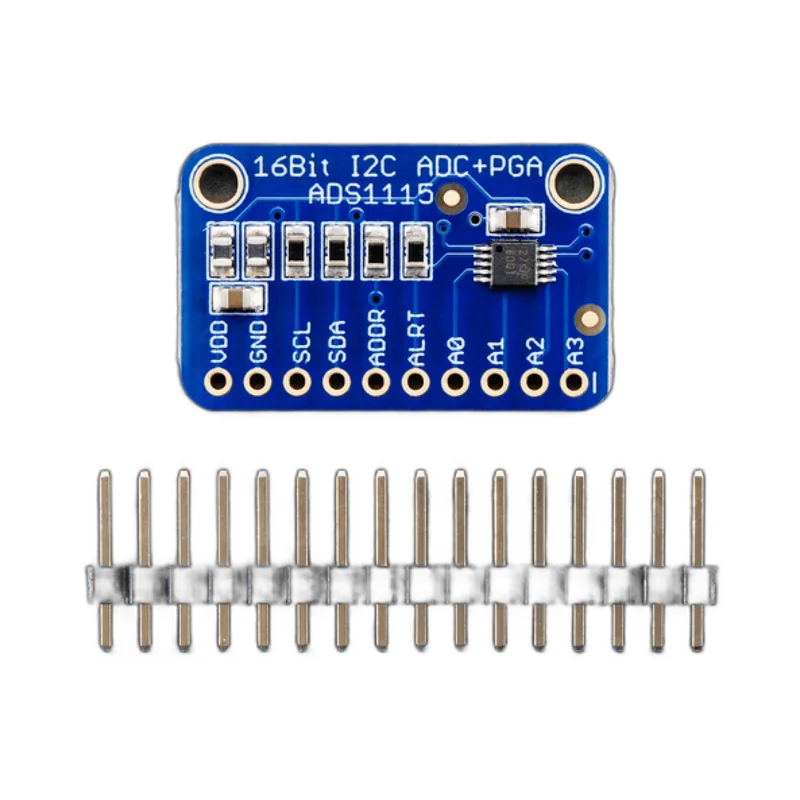

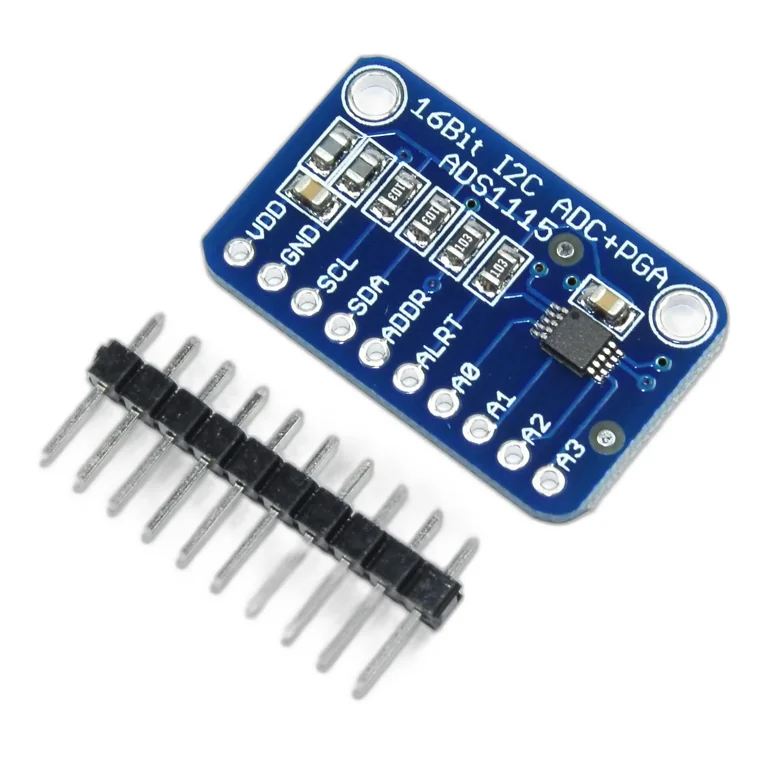

ADS1115 16-Bit I2C ADC Module
—The ADS1115 is a 16-bit analogue-to-digital converter on I2C, and it is what gives a Raspberry Pi the analogue inputs its GPIO header does not have.
Specifications
- 16-bit resolution, 4 single-ended or 2 differential channels
- Programmable gain amplifier for small signals
- Up to 860 samples per second
- I2C interface, four selectable addresses
- 2.0-5.5V supply
- Built-in comparator with alert output
What you can build with the ADS1115 16-Bit I2C ADC Module
- Adding analogue inputs to a Raspberry Pi
- Reading pH, TDS and soil sensors on a Pi
- Precision measurement beyond an Arduino's 10-bit ADC
- Battery voltage monitoring
Compatibility
Works with Raspberry Pi, Arduino, ESP32 and Pico over I2C. The Raspberry Pi has no analogue input at all, so any analogue sensor on a Pi needs this module or one like it.
Shipping
Dispatched from New Zealand with courier delivery nationwide, including rural addresses. Prices are in New Zealand dollars.
Availability: Sold out
